- Màn hình màu 2.8-inch với đồ họa giao diện người dùng dễ thao tác
- Người dùng có thể cài đặt lên đến 24 lịch trình và kích hoạt trên chuông báo động hàng ngày (tùy chọn)
- Âm thanh nhắc nhở cho biết dấu hiệu chấp nhận khi xác nhận bằng ngón tay hợp lệ hay từ chối khi xác nhận bằng ngón tay không hợp lệ
- Hỗ trợ USB flash drive để quản lý dữ liệu offline
- Tích hợp ngõ hỗ trợ vào nâng cao độ linh hoạt để kết nối với máy dò có dây và công tắc khẩn cấp

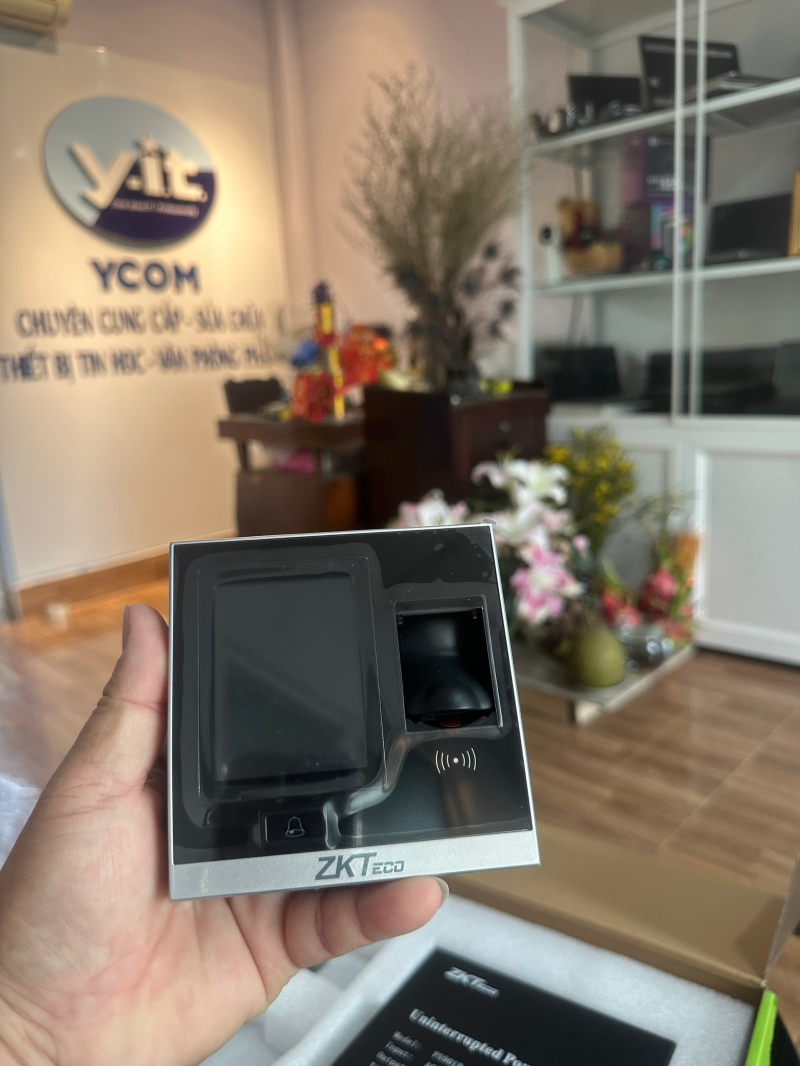

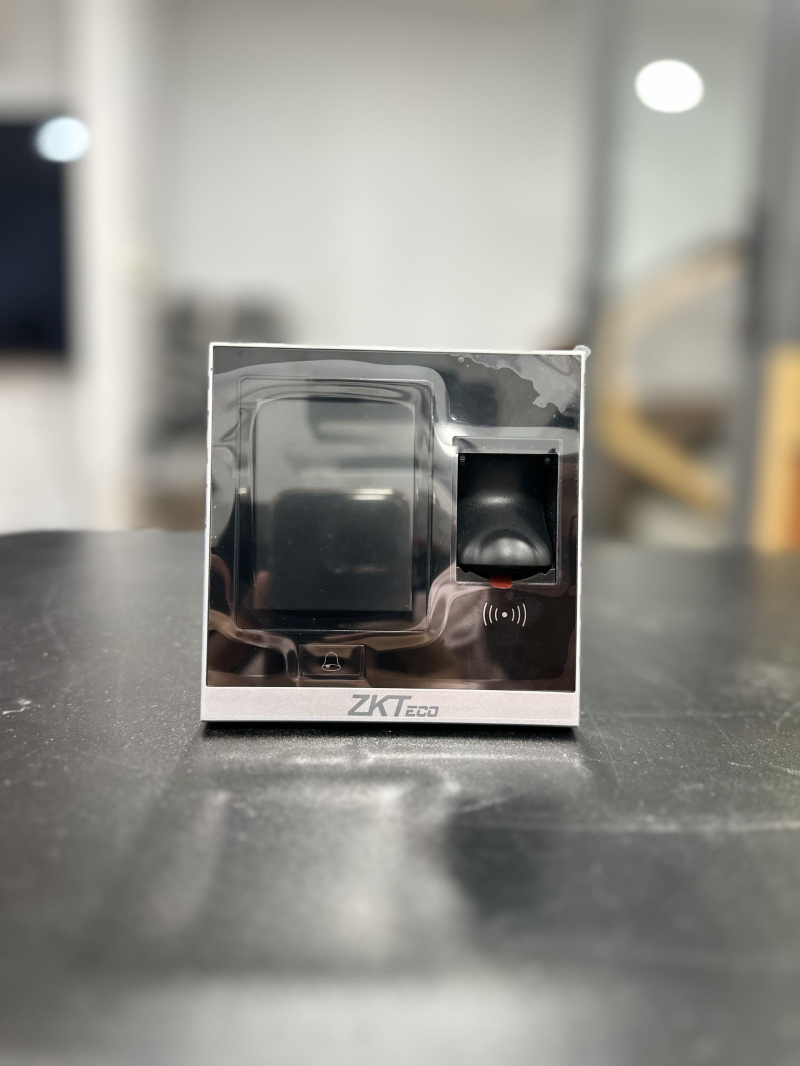

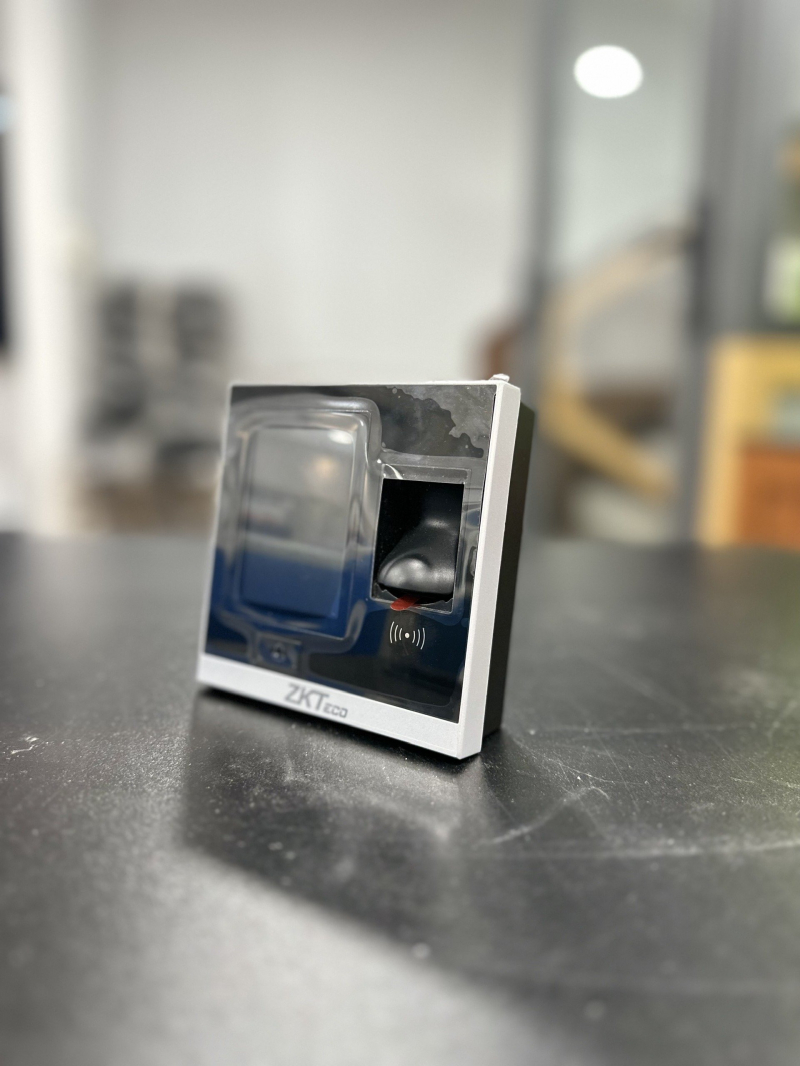

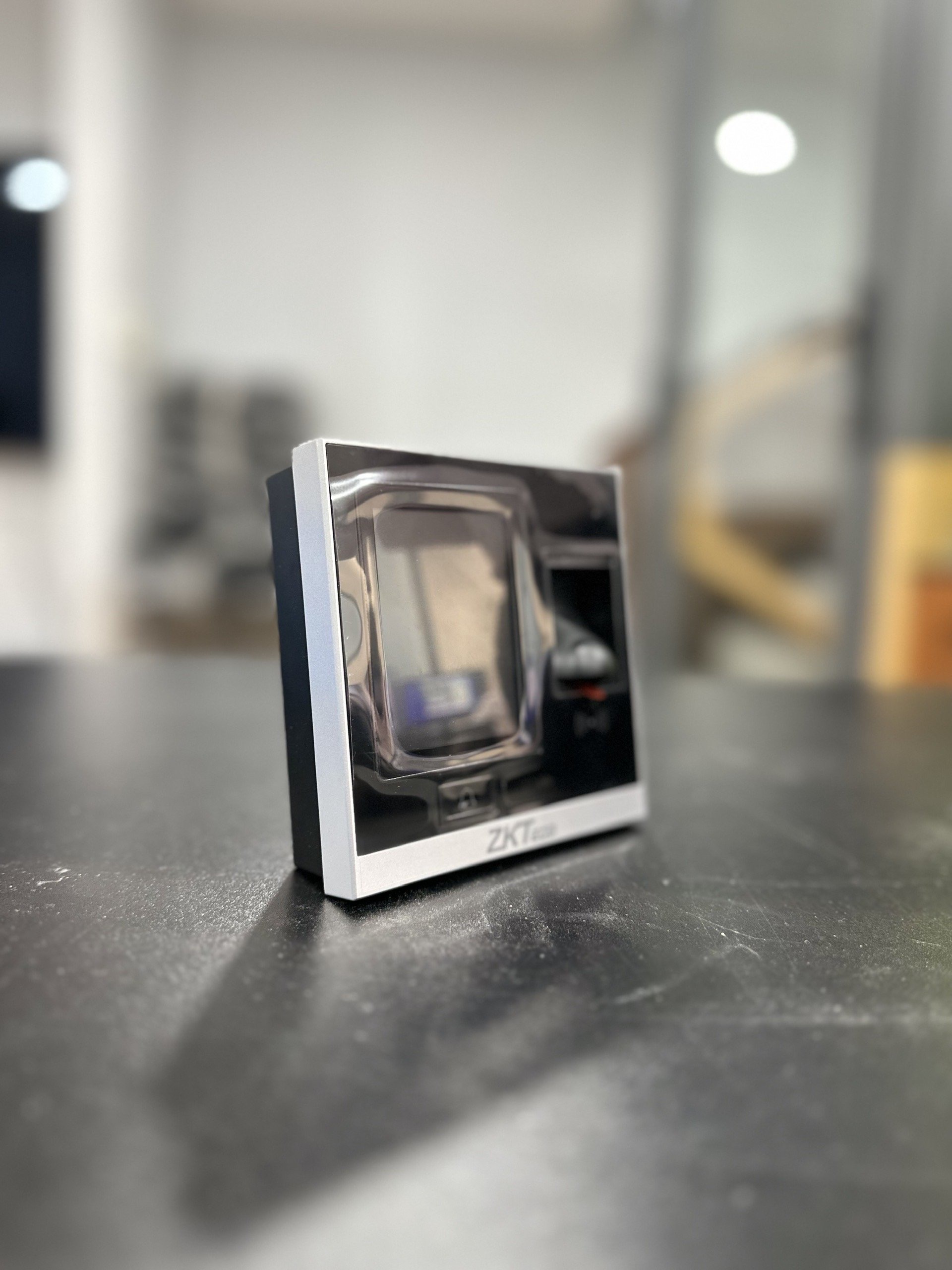

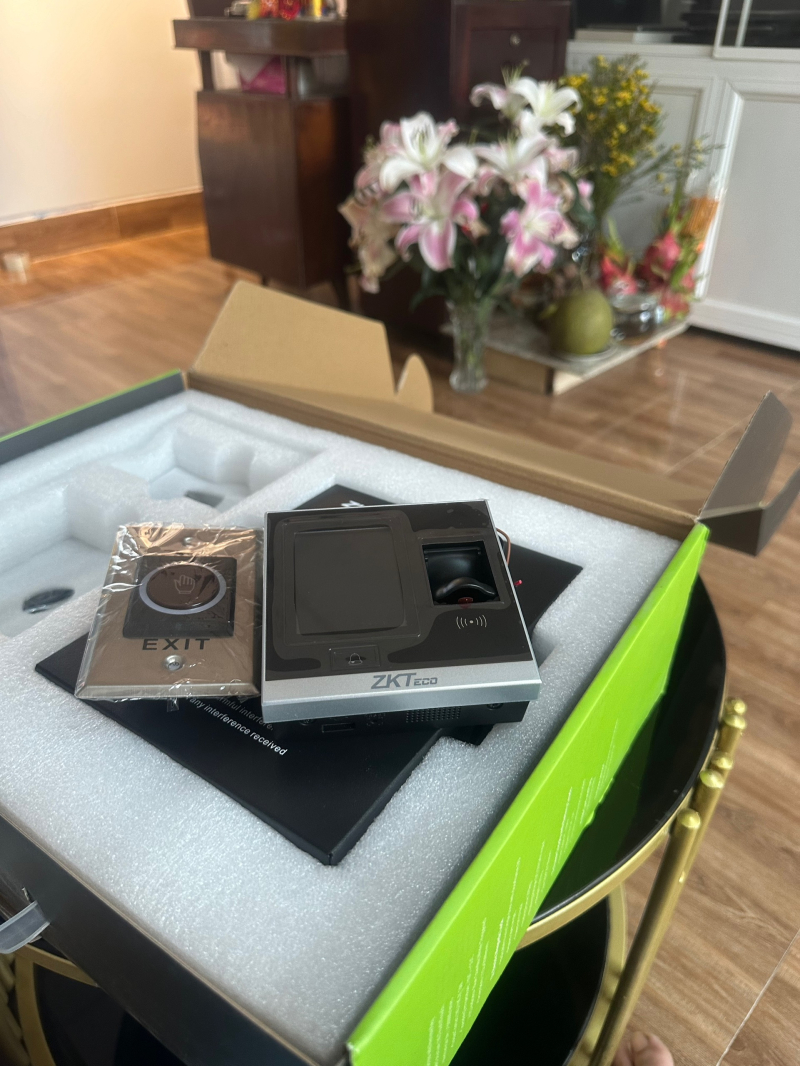

SF400 is an IP based fingerprint terminal with both Network and Standalone
operation modes. It is connectible with ZKAccess 3.5 software for access control
and time attendance management.
With Wiegand output, SF400 is flexible to connect with ZK or any 3rd party
controllers as a slave reader. Wiegand input configures two SF400 units to utilize
Master & Slave solution to enable users verification at both entrance and exit. Anti-
passback function is also enabled to maximize the security level.
Auxiliary input interface allows SF400 to connect with an extra source, for instance, a
smoke detector or emergency switch. Once the linkage function is enabled through
the machine menu, the device generates an alarm signal and
opens doors in case of emergency.
Feature
• 2.8-inch touch screen, color display with
graphical UI for easy operation
• Up to 24 user-defined schedules that can be
activated on a daily bell alert (optional)
• Prompt audio acceptance or rejection signals
for valid or invalid fingers
• Compact and lightweight, small size for
86mm (L) x 86mm (H) socket installation
• TCP/IP or RS485 communication for various
networking environments
• Supports USB flash drive for offline
data management
• Built-in auxiliary input with enhanced flexibility to
link with wired detector or emergency switch
• Up to 15 multi-verification methods to
enhance security level
• Standard access control features such as Time zone,
Holiday, A&C Group, Unlock combination etc.
• Duress Alarm offers effective protection against
duress by threats
• Tamper proof switch and multiple alarm outputs
• Multi-languages display available on request
Specifications
Model SF400
LCD 2.8 inch resistive touch screen
Fingerprint Sensor ZK Optical Sensor (500DPI)
Algorithm Version ZKFinger VX10.0
Communication TCP/IP, USB Host
Fingerprint Capacity 1,500
Card Capacity (Optional) 5,000 (EM/Mifare)
Records Capacity 80,000

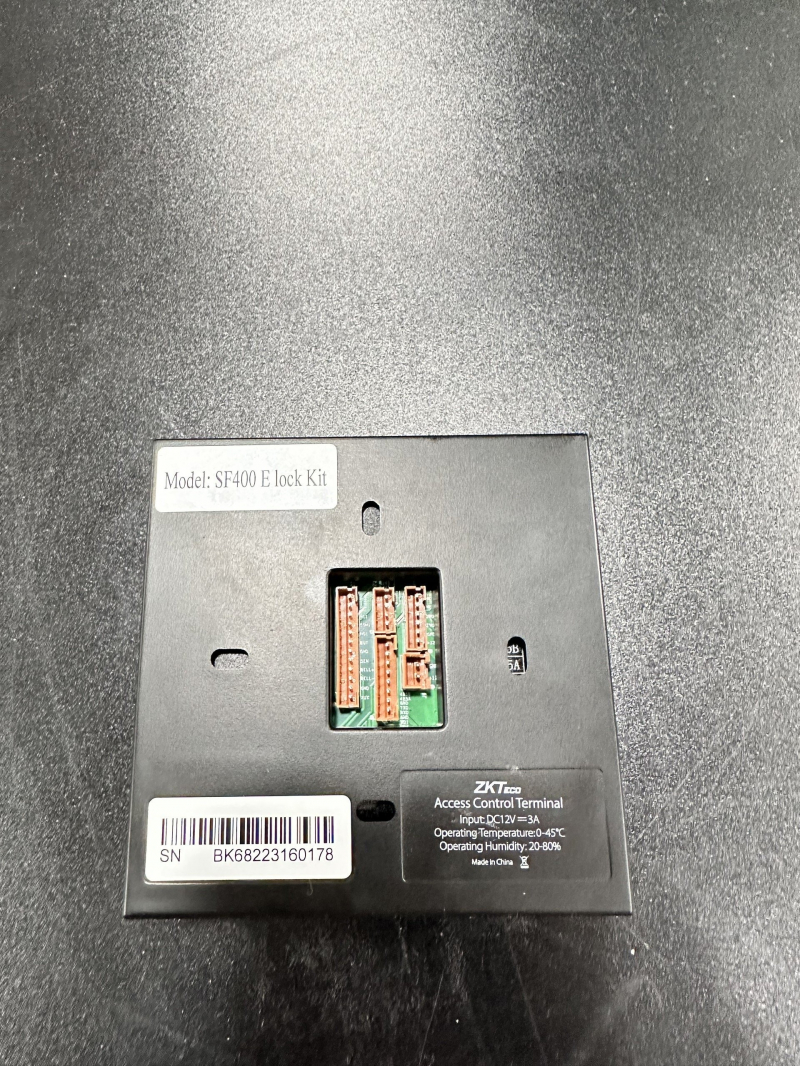

Access Control Interface Electric lock, Door sensor, Alarm, Exit button, Door Bell
Wiegand Signal Wiegand input & output
Aux. Input 1ea for linkage function
Power Supply DC 12V/3A
Operating Temperature 0 ~ 45°C (32°~113°F)
Operating Humidity 20 ~ 80%
Dimension(L x W x H) 105 x 105 x 32mm
Dimensions (m
